SONY Venice HFR (Hi Speed) E/PL-Mount
-
6K Full-Frame CMOS sensor.
-
Over 15 stops of dynamic range.
-
Dual Base ISO 500 / 2500.
-
High Speed recording up to 60 fps in 6K and 120 fps in 4K.
-
Full-Frame and Anamorphic recording.
-
PL mount with E-Mount compatibility.
-
Built-in ND filters up to 8 stops.
-
RAW and X-OCN recording via AXS-R7.
Providing a flexible design configuration within a single camera body, the Sony VENICE 6K Digital Motion Picture Camera is meant to provide you with just the amount of camera you need, so you don’t have to invest in more than necessary. It features a full-frame CMOS sensor with 15+ stops of dynamic range, but in its basic configuration it windows the sensor to shoot Super 35. The camera comes with a removable PL Mount that supports the Cooke /i Technology lens metadata protocols, allowing you to work with cinema-style glass ranging from vintage to modern. As is, the camera supports DCI and UHD 4K capture, while planned and scheduled firmware updates will enable anamorphic, full-frame, and select frame rates from 1 to 72 fps.
Remove the PL Mount to reveal a Sony E-Mount with a locking outer ring that allows you to mount your lens and then rotate the ring to secure it, creating a strong mounting system that does not require you to rotate your E-Mount lens when mounting it to the camera. Eight integrated and motorized ND filters range from clear to seven stops of ND in one-stop increments. The camera features a built-in assistant-side info screen, along with a smaller basic info display screen on the operator side of the camera. It features dual SxS card slots that allow you to capture XAVC or HD ProRes in-camera.
Functions
- Imager modes 6K 2.39:1 and 5.7K 16:9 (with Full-Frame License)
- Support for the X-OCN XT recording format
- Compatibility with Rialto VENICE Extension System
- De-squeeze ratios 1.25x, 1.3x, 1.5x, and 1.8x
- Cache rec function
- AXS Relay rec function
- Simultaneous format
- SxS recording folder structure selection
- Support for 6G/12G output SDI
- Improved imaging assist function
- Support for CBK-WA02 Wireless LAN Adapter
- Improved VF menu operations and Frame Line setting
- Support for CDL files
Use Case
The VENICE is designed to start you off with a basic camera and, through firmware updates and licenses, upgrade it over time. This allows you to upgrade it as your needs grow, instead of having to buy a whole new camera system. Licenses can be permanent upgrades or used for limited periods of time, for those jobs that require more features than you normally use.
Sensor
The sensor features more than 15 stops of dynamic range and has been designed to exceed the BT.2020 color space—which is larger than the DCI-P3 color space—enabling you to create stunning images with a camera that already exceeds future specs.
Full-Frame Sensor
In full-frame, you can use the full 6048-pixel width of the sensor for widescreen spherical 2.39:1, or large format scope. A firmware upgrade and license are required for full-frame recording.
Fast Shutter
The VENICE features a high-speed readout that minimizes the dreaded “jello” camera effect that plagues some CMOS sensor cameras.

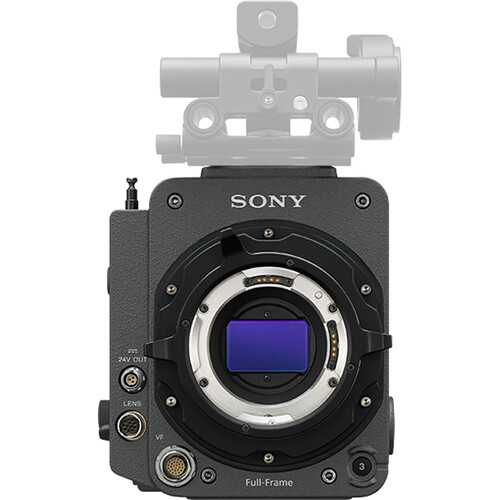

PL Mount
The VENICE comes with the industry-standard PL lens mount. It is compatible with all Super 35 and full-frame PL lenses, spherical and anamorphic. The removable lens mount includes contacts that support Cooke /i Technology. The camera’s lens information is recorded as metadata frame by frame.
E-Mount
Removing the PL Mount exposes the camera’s E-Mount, which allows compatibility with E-Mount lenses. This E-Mount is designed with a lever lock that eliminates the need to rotate your lens when mounting, and the lever lock secures the lens in the mount minimizing play. Rotating of the locking collar means that in most cases lens support rigs don’t need to be removed, which saves time during production. A planned firmware update is required to take full advantage of the E-Mount.
Recording
The VENICE records XAVC UHD 4K or HD ProRes internally to its SxS card slots. An optional AXS-R7 on-board recorder will enable 16-bit Raw and X-OCN recording to AXS cards with a future firmware update.
This permanent High Frame Rate License from Sony activates HFR image capture on your VENICE camera, enabling you to shoot slow-motion footage. Activating this upgrade means you can record X-OCN format on an AXS memory card in 6K 3:2, 4K 4:3, 4K 2.39:1, and 4K 17:9 frame rates.
X-OCN Recording on AXS Memory Card Frame Rates
6K (6048 x 4032) 3:2, at 26 to 60 fps
4K (4096 x 3024) 4:3, at 49 to 60, 66, 72, and 75 fps
4K (4096 x 1716) 2.39:1, at 120 fps
4K (4096 x 2160) 17:9, at 66, 72, 75, 88, 90, 96, 100, and 110 fps
חיישן
| Sensor Type | Full-Frame CMOS |
|---|---|
| Resolution | 3.8K 16:9, 4K 17.9: 1-60FPS |
| Sensitivity / ISO | ISO500 |
| Dynamic Range/ Latitude | 15+ Stop |
הקלטה
| Video Recording Format | 3.8K 16:9 (3840 x 2160): 23.98p, 24p, 25p, 29.97p, 50p, 59.94p |
|---|---|
| Audio Recording Format | LPCM 4ch , 24-bit 48-kHz |
| Gamma Curve | S-Log3 |
ממשק
| Memory Cards | ×2 SD card slot ×1 |
|---|---|
| Audio | XLR-type 5pin (female) x1 (LINE/ AES/EBU / MIC / MIC+48V selectable) |
כללי
| Lens Mount | PL |
|---|---|
| Power Requirements | DC12V (11～17.0V) |
| Weight | 3.9KG (without lens, handle, VF attachment expansion bottom plate and accessories) |
| ויופיינדר DVF-EL200 | |
| כבל ויופיינדר | |
| מתקון ויופיינדר | |
| ידית נשיאה מרכזית מתכווננת | |
| כותפת / מתאם בארז / פלטה ARRI | |
| באלאנס פלייט / פלטקה סוני | |
| מתאם V-Lock | |
| מתאם V-Lock | |
| בארז | |
| רשיון אנאמורפי | |
| רשיון Full Frame | |
| רשיון High Frame Rate | |
| מקליט RAW משולב AXS-R7 |
