Omnibar Combo Kit
The ARRI Omnibar Combo Kit is a professional linear LED lighting system comprising eight Omnibar fixtures – four 2ft and four 4ft units. Featuring a full-spectrum RGBMA light engine, a wide 1,700–20,000K CCT range, built-in rechargeable batteries, and integrated CRMX and Bluetooth wireless control, the system is designed for film, broadcast, stage, studio, and content production. Its modular design supports daisy-chaining, magnetic interchangeable optics, flexible mounting, and IP65 weather resistance.
- 8 linear LED fixtures – 4× Omnibar 2 and 4× Omnibar 4
- RGBMA full-spectrum color mixing
- 1,700–20,000K color temperature range
- Up to CRI 98 and TLCI 98
- Built-in rechargeable battery – up to 2 hours at maximum output and up to 24 hours at lower output
- Integrated CRMX and Bluetooth wireless control
- Wired DMX control via included Omnibase
- Magnetic interchangeable optics: Diffuser, Dome and Intensifier
- IP65 dust and weather resistance
- 32 pixel zones per fixture
- Daisy-chain capability for multiple fixtures
- Includes mounting accessories, diffusers, mini tripods, and dedicated transport case
- Linear IP65 LED light with magnetically interchangeable optics and extensive practical mounting options
- RGBMA color mixing
- CCT range from 1700 to 20,000K
- Versatile color modes, new Pixeleffects, and cinematic lighting effects matching SkyPanel
- Battery powered to allow operation up to 24 hours
- Built-in CRMX and Bluetooth wireless control
- Wired DMX control via included Omnibase
- Omnibase supports daisy-chaining and up to DMX 6 universes
- The Combo Kit includes four 2′ and four 4′ lights with diffusers, intensifiers, Omnigrips, Omnipins, eyebolts, and mini tripods
Designed for quick setups, the Omnibar features flexible rigging options that save valuable time and reduce complexity. Its front-loaded, magnetically fixed, and easily interchangeable optics make it easy to customize your light setup. The flat diffusers can be used for controlled softening without significantly altering the beam angle.
The onboard LCD features an intuitive user-friendly menu to toggle between CCT, RGB, and Effects modes, as well as runtime and DMX configuration.
The Omnibar also features a powerful integrated battery and a control panel recessed into the rail system, providing access to core functions such as color modes and lighting/pixel effects. The battery is designed to be fully service-replaceable by ARRI Service, authorized service partners, or rental houses with suitable facilities.
The included Omnibase is a compact unit that allows you to utilize wired DMX control of your wireless Omnibars, providing IP-rated durability and all-weather performance.
It combines a responsive touchscreen interface with 5-pin XLR input and output and RJ45 Ethernet ports that convert wired DMX 512 control and connects to LumenRadio CRMX1 (DMX), Art-Net, sACN, and ARRI Bluetooth Mesh Protocol.
NOTE: A powerCON cable for Omnibase is not included and must be ordered separately.
The included Omnigrips and Omnipins are a key mounting combination for quick and efficient 16mm attachment onto grip heads, clamps, and compatible stands, with additional fitting points for the included eyebolts to secure safety chains.
They allow you to create a seamless connection of multiple fixtures in horizontal or vertical orientation. For example, you can connect two 2′ bars to create a 4′ for standard floor use, or connect a 4′ and a 2′ to make a 6′ fixture.
The intuitive ARRI Omnibar Control App interface features a clear lighting control layout, detailed status displays, and straightforward configuration screens. It provides speed and simplicity when configuring DMX and control settings for a whole case of Omnibars directly from an iPhone.
You can also utilize the Blackout app for seamless integration with CRMX wireless systems (e.g., LumenRadio), which provides stable connectivity, efficient fixture patching, precise color-control interfaces, and demonstrations of multiple user interactions throughout the control workflow.

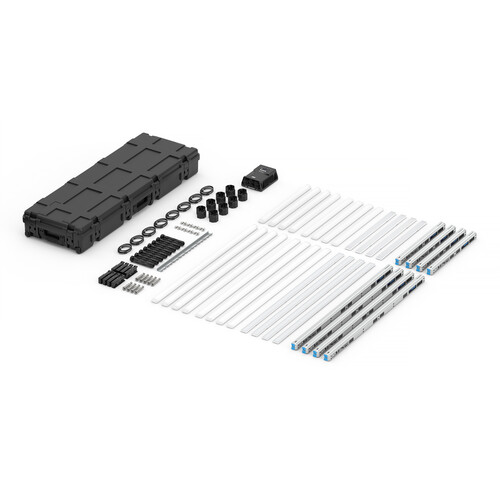

| 4 x ARRI Omnibar 4 Single Set | |
| 4 x ARRI Omnibar 2 Single Set | |
| 4 x Round Diffuser for Omnibar 2 | |
| 4 x Round Diffuser for Omnibar 4 | |
| 4 x Flat Diffuser for Omnibar 2 | |
| 4 x Flat Diffuser for Omnibar 4 | |
| 4 x Intensifier for Omnibar 2 | |
| 4 x Intensifier for Omnibar 4 | |
| Omnibase | |
| 8 x Omnigrip | |
| 9 x Omnipin | |
| 16 x Omniclip | |
| 16 x Eyebolt | |
| 8 x Mini Tripod | |
| 6 x Power Adapter | |
| 2 x Power Adapter (2') | |

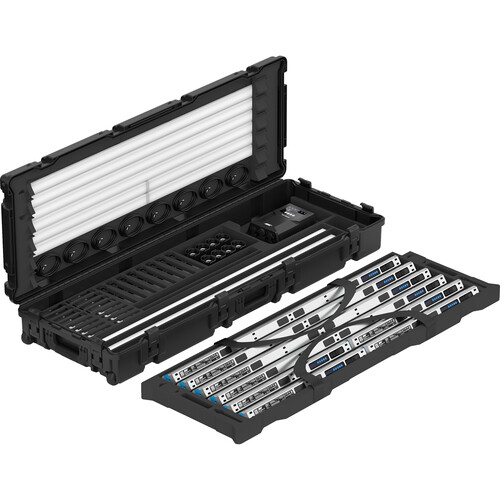

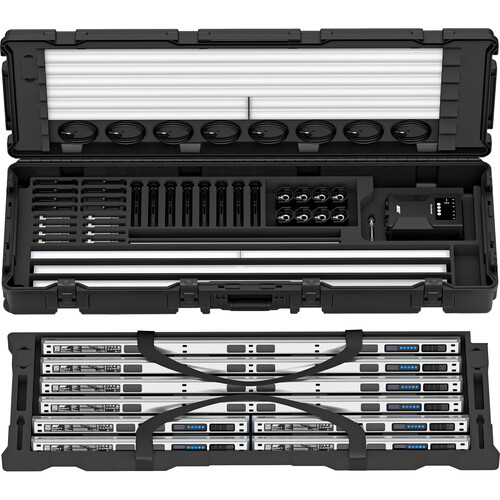

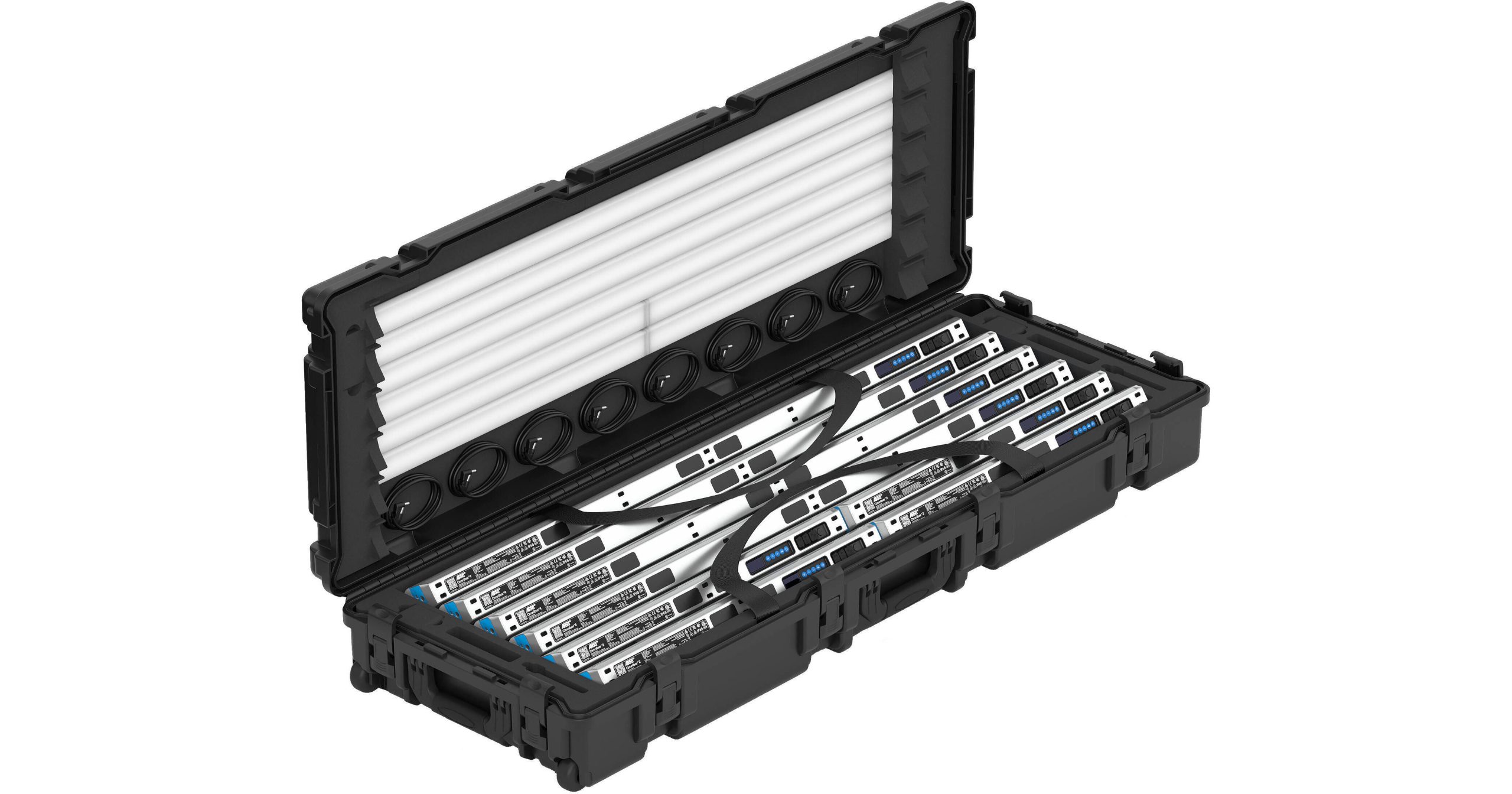

| Omnibar Case |
