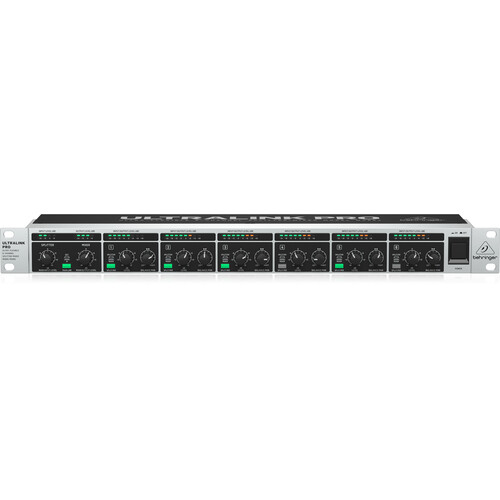

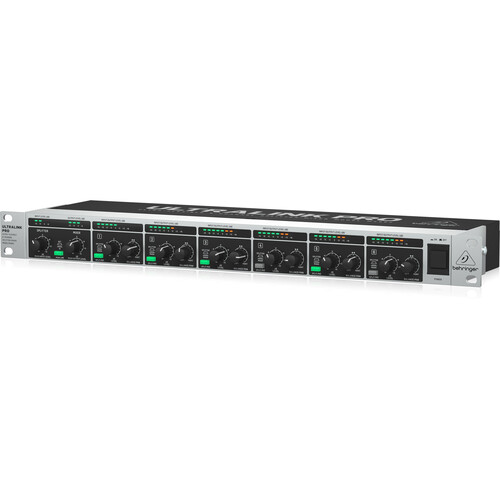

BEHRINGER MX882 Ultralink Pro 8-Channel Splitter/Mixer

Behringer MX882 V2 Ultralink Pro הוא מיקסר/מפצל אודיו גמיש בעל 8 ערוצים, המאפשר שילוב או פיצול של אותות אודיו בהתאם לצורכי המערכת. המכשיר מתאים למערכות PA, אולפנים, תיאטראות, חדרי ועידות, הקלטות והגברה חיה.

  • 6 ערוצי Mono עם אפשרות Split/Mix נפרדת לכל ערוץ
  • ניתן לעבוד כמיקסר 8 כניסות / 2 יציאות או כמפצל 2 כניסות / 8 יציאות
  • פונקציית התאמת רמות בין -10 dBV ל־+4 dBu
  • כניסות ויציאות XLR מאוזנות ו־1/4" TRS
  • בקרת Level ו־Balance/Pan לכל ערוץ
  • מדידי LED לניטור רמות האות
  • הגבר של עד +15 dB בערוצים
  • רוחב Rack סטנדרטי 19", גובה 1U
  • צריכת חשמל: 15W
  • מידות: 483 × 149 × 44 מ"מ
  • משקל: 1.7 ק"ג
מק"ט MIX-ULP
כמות:
1722357203_IMG_2302152 1722357203_IMG_2302155 1722357203_IMG_2302154

The Behringer MX882 V2 Ultralink Pro 8-Channel Splitter/Mixer boasts a variety of flexible features, making the unit flexible enough for use in homes, theaters, conference rooms, houses of worship, P.A. monitoring, live sound reinforcement, and recording.

The MX882 V2 multi-function audio signal router features 6 inputs and outputs, allowing dual usage as a mixer or signal splitter. The signal splitter function allows users to route incoming audio signal, via the main stereo inputs, to any of the available 6 outputs. Servo-balanced, gold-plated XLR and 1/4″ TRS inputs and outputs assure quiet, high-quality audio signal. You can use the MX882 as a multi-channel line matching transformer. Every channel features comprehensive 8-segment metering of input gain, with 4-segment metering provided on main in and main output channels.

Splitter Function
Basically, the MX882 consists of 6 mono channels, which can be used either as a splitter or as a mixer. For instance, a stereo program source can be connected via the Main Inputs, and then routed to any of the mono channels set to Split mode. For our example, we’ll use Channel 1 with the Split/Mix switch in the out (Split) position. Adjust the Channel 1 Balance/Pan control to set how much of the Left and Right Main Input signal is routed to the Channel 1 mono Output XLR. And you can do the same thing with all 6 of the MX882 channels.
Mixer Function
In Mix mode, the input signals from any, or all, of the MX882’s 6 channels can be mixed to the stereo Main Output, with their individual Balance/Pan controls determining the signal’s placement within the stereo image (Pan). It is advantageous that when operating in Mix mode, the stereo Main Input signal is automatically sent to the Main Outputs, allowing you to combine a total of up to 8 individual signals. The mono Input signals are still sent to their mono outputs, which means each channel can also be used as an individual matching amplifier. The Level controls for the corresponding channels enable the user to adapt the levels at will, with a maximum gain of +15 dB.
Typical Applications
The multitasking MX882 can accommodate a wide variety of applications; use it as a keyboard or drum submixer or as a distribution amplifier for PA systems, dance clubs, theatres, churches, hotels, communication systems, and more. It works well as an add-on module for mixer channels, an add-on module for FX and monitor paths, and even a level translator from -10 dBV to +4 dBu, or vice versa.
Comprehensive Metering
Every channel features comprehensive 8-segment metering of input gain. In addition, 4-segment metering is provided on Main In and Main Output Channels.
MX882 V2 Ultralink Pro 8-Channel Splitter/Mixer
AC Cable
