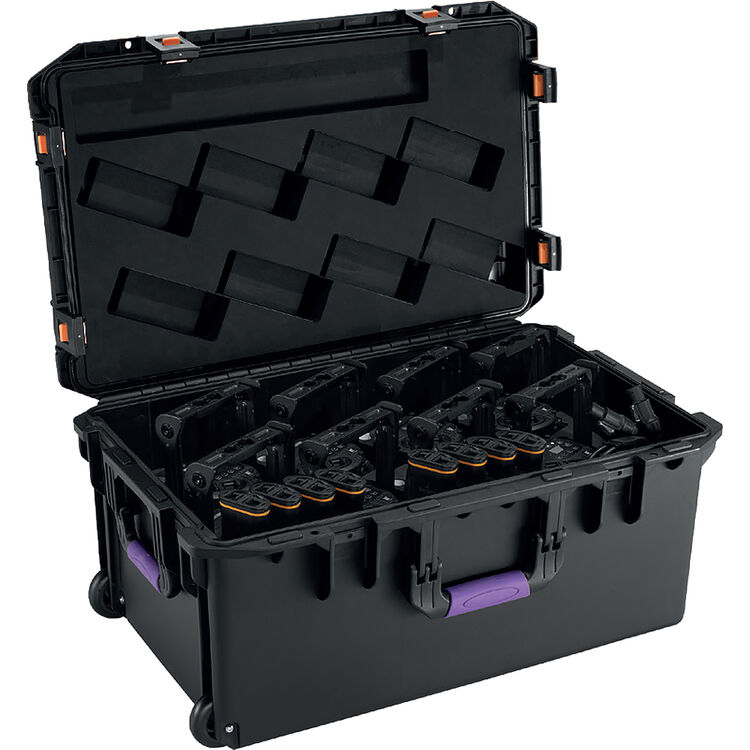

QuikBeam Zoomable Fresnel LED Spotlight (4-Light QuikCase Kit)

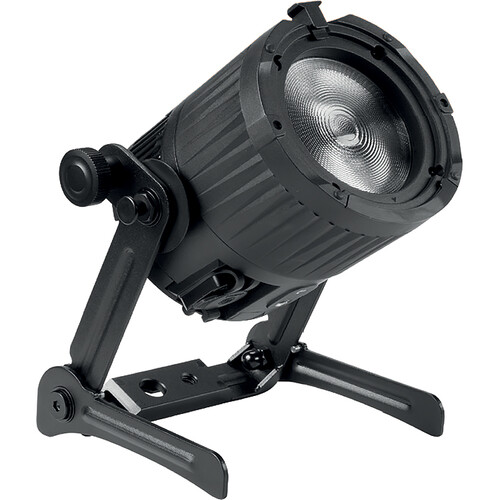

The QuikBeam Zoomable Fresnel LED Spotlight with QuikBrick Battery is a zoomable, Fresnel-based LED fixture designed for film, broadcast, and event lighting applications. It delivers high-quality white and full-color output with excellent color rendering and precise beam shaping through its integrated Fresnel optical system, enabling flexible use as a key light, accent light, or theatrical spotlight.

Color Accuracy & Control

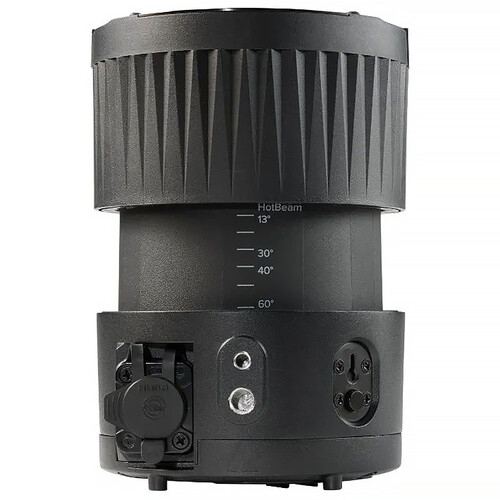

Powered by the Titan LED Engine, the RGB (+ mint + amber) color mixing produces accurate white light and saturated colors across a wide spectrum. The CRI and TLCI ratings of 96 or higher offer professional color fidelity in film and broadcast workflows. Its Fresnel lens provides a continuously adjustable beam angle from 13 to 60°, allowing precise shaping for focused highlights or wide-area coverage depending on application requirements.
Fixture Control and Connectivity

The QuikBeam integrates comprehensive wired and wireless control systems for professional production environments. Supported control methods include:

Wireless CRMX for cable-free DMX control
Art-Net and sACN over Ethernet
Bluetooth connectivity via AsteraApp
Infrared remote control
Integrated display with onboard controls
Wireless RDM monitoring and configuration

Wireless CRMX and UHF control provide reliable operation at distances up to 330 yd, supporting large-scale productions and complex lighting systems. The fixture can also function as a Bluetooth Bridge, enabling communication with other Astera lighting devices in networked environments.

Rugged Build and Mounting Flexibility

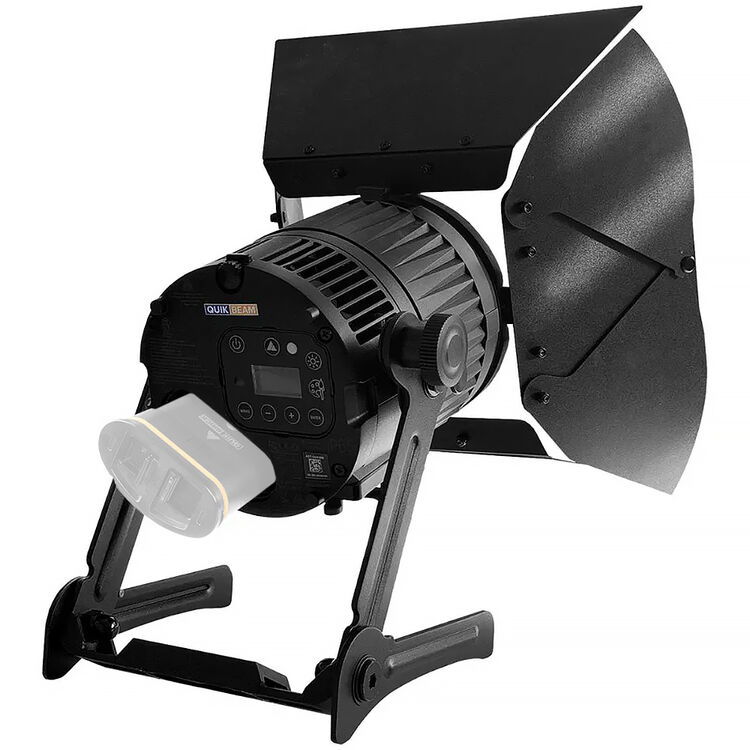

The QuikBeam can be used in a standing or hanging position. It features durable construction designed for professional rigging and field use. It includes:

Removable yoke with a 3/8″-16 thread and a 1/2″ hole for attaching suitable mounting accessories
Built-in kickstand for ground placement
1/4″-20 and 3/8″-16 mounting threads
Airline track compatible mounting options
Multiple Powering Options

The QuikBeam can be powered by:

Power over Ethernet (PoE+/PoE++): Power over Ethernet (PoE) combines power and data in a single cable, simplifying setups, reducing clutter, and giving you more flexibility. With it, cables can reach up to 328′, standard sACN and ArtNet signals are supported, and the swappable battery can charge while connected. PoE also enables bi-directional communication, so IP or DMX addresses can be set remotely even after installation.
QuikBrick battery: The QuikBrick battery enables wireless operation and supports up to 20 hours of runtime depending on the output level with 80 minutes of of runtime at maximum brightness. It is a swappable battery that becomes fully waterproof when inserted into QuikBeam, designed for uninterrupted workflows and fast rental turnaround. It charges via PoE while docked in the back of QuikBeam
Astera QuikBrick Battery

Wirelessly power your QuikBeam fixture while maintaining its IP65 rating with the QuikBrick from Astera. Able to run the QuikBeam at max power for up to an hour and 20 minutes, the battery features an integrated charging level indicator and supports quick swapping for uninterrupted wireless operation. This battery is waterproof once inserted thanks to a protective cover that can be attached independently for safe battery-free operation. When docked to a connected QuikBeam, the battery charges via PoE. Otherwise, charge via the integrated USB-C port or prepare multiple batteries simultaneously with the separately available ChargingDock.

Additional Details
USB-C port supports smartphone power supply fast charging.
QuikBrik delivers up to 20 hours of runtime at lowest power.
Battery can be removed and replaced with battery cover for lighter wired operation while maintaining IP65 rating.
Astera Four-Bay Charging Dock for QuikBrick

Conveniently charge up to four QuikBrick batteries at once with the Charging Dock from Astera. Simply place your battery in one of the four available bays to charge it. Powered using a separately available PowerCON True1 IN cable, you can charge multiple QuikBrik batteries simultaneously to ensure uninterrupted use of your QuikBeam fixture.
